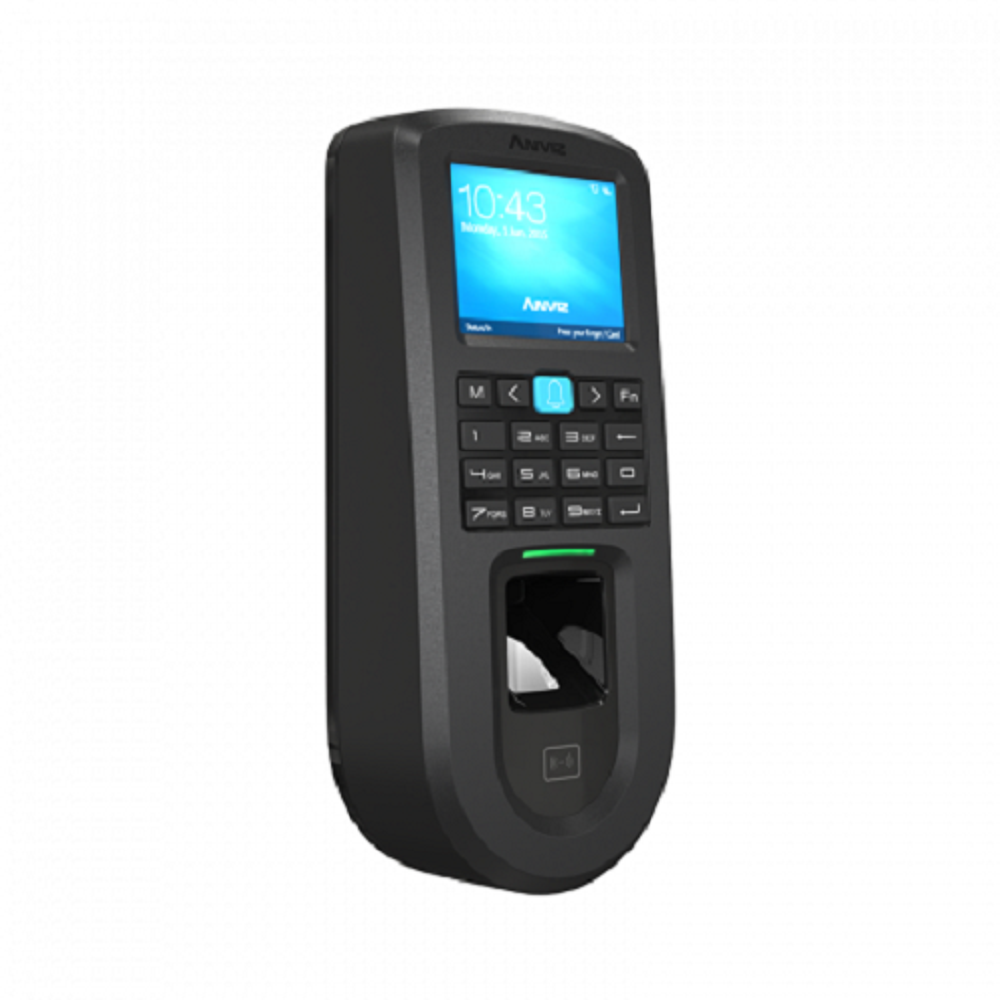

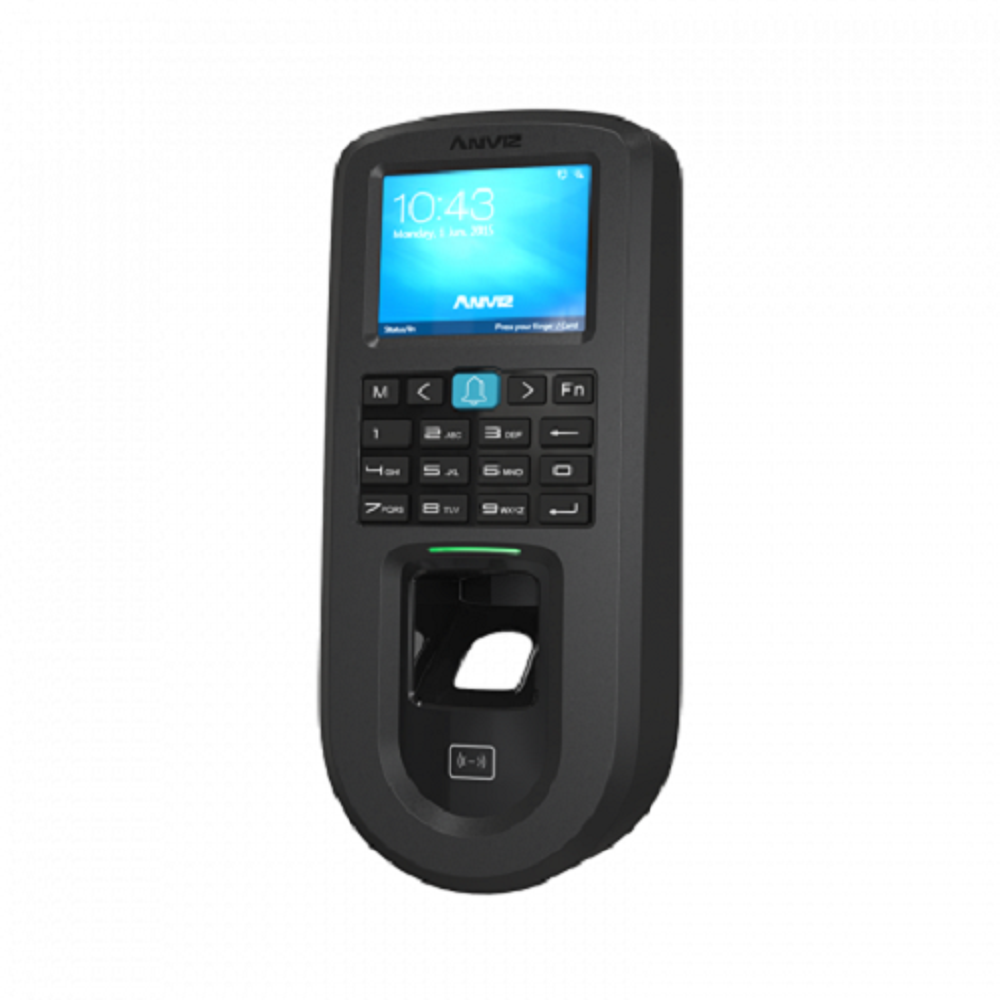

ANVIZ VF30 PRO Full Functional Standalone Access Control Terminal
VF30 PRO Full Functional Standalone Access Control Terminal. color LED
VF30 Pro is a Linux based standalone access control reader equipped with a 1.0Ghz processor,
2.4" TFT LCD screen and flexible PoE and WIFI communications. The VF30 pro also supports a webserver function, ensuring easy self-management and professional standalone access control interfaces. A standard EM card reader is also equipped on the device.
Massive Memory Capacity
VF30 Pro offers a massive memory capacity to manage a large number of users. A single unit of VF30 Pro can accommodate up to 3,000 users, 3,000 cards and 100,000 logs.
Power over Ethernet
The VF30 Pro supports a seamless power sourcing over an Ethernet cable without any degradation in network performance or reach. Anviz’s PoE featured devices comply with the IEEE802.3af standard to provide users with lower installation costs, simpler cabling, and lower maintenance costs.
Versatile Interfaces

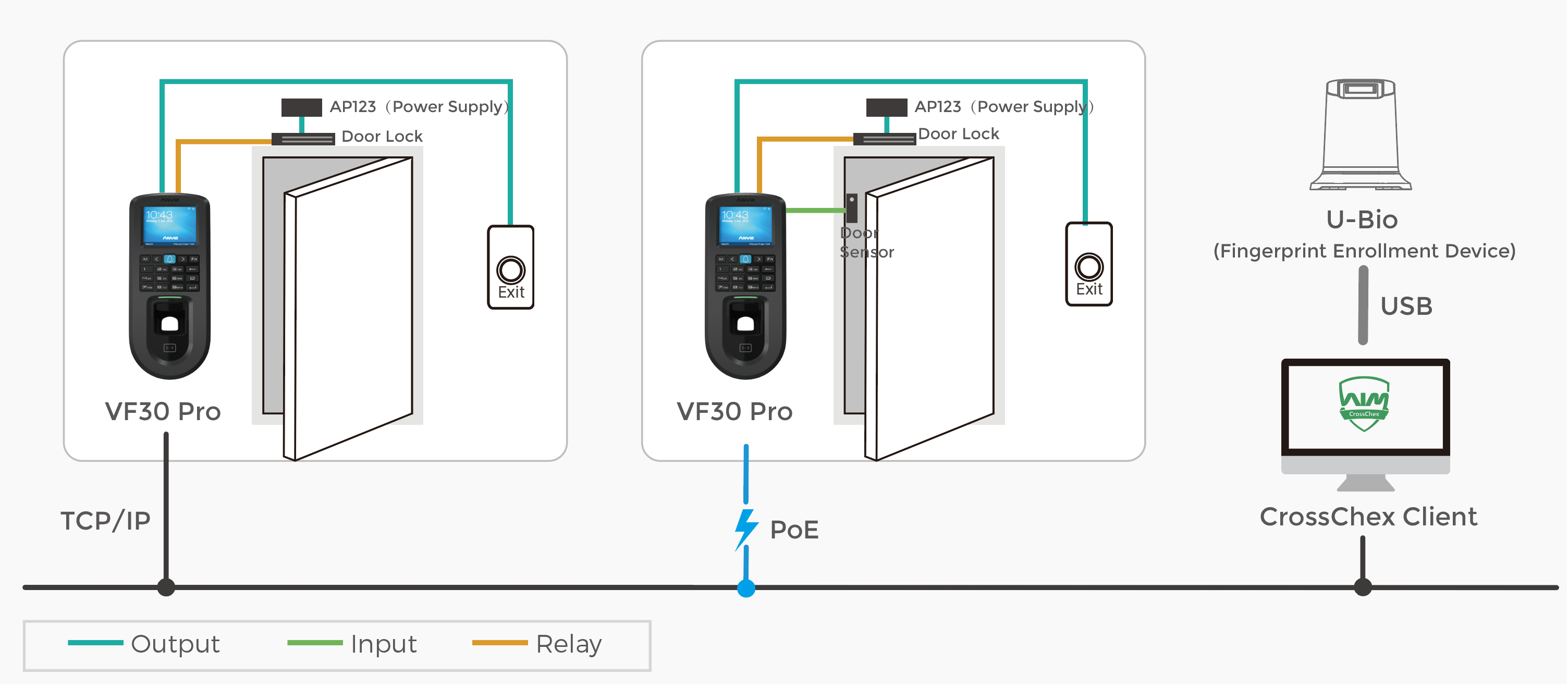

The VF30 Pro comes with not only a TCP/IP interface, but also more traditional interfaces (RS-485,Wiegand) to provide higher flexibility and multiple installation options for different environments. It also offers 2 internal inputs and 1 internal relay output to control peripheral devices.
Infinite Freedom
The VF30 Pro supports WiFi to provide users with lower installation and maintenance costs.
- Authorized dealer stock
- Sealed USA retail product with the full manufacturer warranty and every accessory the factory packed.
- Shipping
- Ships anywhere in the United States and Canada. NYC installation can be added to the order.
Questions on compatibility or channel count? Call 718.275.9343 and we will check it against your recorder before you buy.
Specifications
- Item
- VF30 Pro
Capacity
- Fingerprint Capacity
- 3,000
- Card Capacity
- 3,000
- Log Capacity
- 100,000
Inferface
- Comm
- TCP/IP, RS485, POE (Standard IEEE802.3af), WiFi
- Relay
- Relay Output (COM, NO, NC )
- I/O
- Door Sensor, Exit Button, Door Bell,Wiegand in/out, Anti-pass Back
Feature
- Identification Mode
- Finger, Password, Card
- Identification Speed
- <0.5s
- Card Reading Distance
- >2cm ( 125KHz), >2cm (13.56Mhz),
- Image Display
- Support
- Time Attendance Mode
- 8
- Group, Time Zone
- 16 Groups, 32 Time Zones
- Short Message
- 50
- WebServer
- Support
- Daylight Saving
- Support
- Voice Prompt
- Support
- Clock Bell
- 30 Groups
- Software
- Anviz CrossChex Standard
Hardware
- CPU
- 1.0 GHz CPU
- Sensor
- Touch Active Sensor
- Scanning Area
- 22*18mm
- RFID Card
- Standard EM, Optional Mifare
- Display
- 2.4" TFT LCD
- Dimensions(W * H * D)
- 80 * 180 * 40mm
- Working Temperature
- -10℃~ 60℃
- Humidity
- 20% to 90%
- PoE
- Standard IEEE802.3af
- Power
- DC12V 1A
- IP Grade
- IP55
