• 4 ~ 16 composite video inputs (BNC Connectors)
• 1 IP Camera Access (Selected IP Cameras)
• Video Format: NTSC and PAL
• Support 352x240 and 640x480, or 720x480 pixels (NTSC/PAL) 16-bit true color
• RCA composite video out to a regular terminal or TV monitor
• Supports static as well as dynamic de-interlacing for smoother graphics
• Built in noise reduction algorithm

Display

• Adjustable frame rate and resolution on each camera
• Auto Scan with full screen display under 1, 4, 8, 9, 16-camera display modes
• Pan/Tilt/Zoom (PTZ) cameras
• Auto Gain Control (AGC) balances image quality
• Software based night view function enhances low light condition

Recording

• Video compression: MPEG4 / MPEG4 H.264 / M-JPEG
• Supports 352x240, 640x240, 720x480
• Fully de-interlace in 640x480 and 720x480 modes (algorithms enhanced for static or dynamic scenes)
• Recording modes: Alarm trigger / Motion
• Detection / Continuous / Schedule / Voice detection recording
• Programmable multiple masking zones
• Intelligent shield protects privacy
• Max 4 audio channels recording
• Capable of recording audio channel(s) with full synchronization
• Auto recycling when storage nearing full
• Intelligent pre-motion and post motion recording
• Supports Video Encryption for secured remote viewing

Search & Playback & Backup

• Real time playback without having to disable recording/network functions
• Powerful search: by date, time, camera, area, event, vision, POS text or log file
• Full screen playback
• Complete playback control: playback, backward playback, fast forward/backward playback, forward/backward frame-by-frame playback
• Digital zoom into any designated area
• Export a single frame into a file or print out
• Set a segment and have it output as avi or mpeg video clip
• Visual search by day, hour, minute, second
• Bookmark search: By time, description. Protect recorded file from being recycled and show file status
• Supports direct backup to DVD-RW / CD-RW (Requires Nero Ultra 6.0+ on the NV PC)

Remote Web Access

• Simultaneous multiple remote live/recorded surveillance via Internet Explorer 6
• Backup remotely
• Central management server controls multiple DVRs
• Remote monitoring / remote recording / playback remote recording / playback server recording
• Full control of PTZ cameras remotely
• Two-way audio communication
• PDA handy view (Windows CE 3.0 / Pocket PC 2002 or above) and Windows Smart Phones
• 1,4,9 and 16 screen divisions
• Remote E-map
• Choose from dial-up, Internet or Lan speed
• Dispatch server allows you to broadcast video stream to the public
• DDNS function supports dynamic IP

Schedule

• Record, Network enable, backup, reboot, and alarm
• One time or weekly repeat schedule
• Scheduling can be done down to every quarter of an hour

E-map

• Showing the positions and status of camera, sensor, and relay
• Extend to 8 maps

Alarm Notifications (on motion detected, video loss and/or sensor triggered)

• E-mail notifications
• FTP notifications
• Voice modem call out notification
• Turn relay on (light switch, alarm, etc)
• Plays warning sound (can be re-recorded)
• Start recording on multiple cameras (capture video from different angle)
• Send TV-out signals
• Launch E-Map
• Enlarge camera view
• Send SMS/MMS (Requires SMS Modem)
• Sends Event to Central Monitoring Server
• Alert messages helps security follow proper standard operational procedures
• Hard Disk Failed
• Launch external programs
• POS keyword trigger
• Alarm Reset
• Trigger based on missing or suspicious object detected
• Trigger based on scene changes

User Access

• Setup as many users as you like with their own individual passwords
• Each user can be preconfigured to perform only certain actions (eg. access specific cameras remotely)

System Requirements

PC: All Windows PCs

CPU: Pentium 4 3.0 GHz or higher

Motherboard with Intel 865, 875, 915, 945 Chipset (VIA/SiS/Ali chipset motherboards not supported) (Recommended Intel, ASUS, Gigabyte motherboards)

OS: Windows 2000 / XP Professional (XP Pro recommended)

RAM: 512MB or higher

32-bit PCI 2.1 compliant bus slot

HDD: 80GB or higher

CD-ROM/DVD-ROM

32-bit high color SVGA graphics card with at least 64MB video memory and DirectDraw / YUV Rendering Capability (AGP recommended)

10/100 Base-T Ethernet card

Sound card and speakers

Package Includes

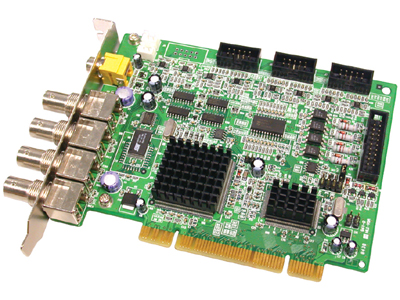

• 1 NV3000 Card
• 1 Watchdog cable
• 1 Video Signal Cable
• 1 Quick User Guide
• 1 Installation CD (includes drivers, application program, manual)

* Specifications subject to change without notice

* Specifications listed are for Version 5.7 SP2 or above
