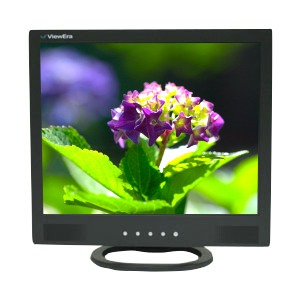

ViewEra - V151BN-B - 15" LCD Monitors with VGA, BNC (1 in / 1 out) video and speakers
The ViewEra V151BN 15” TFT-LCD security monitors produce fast response time of 12 ms plus wide viewing angle of 130(H) /120(V) , high contrast ratio of 500:1 (typ) and brightness of 250 cd/m (typ). The V151BN delivers resolution of 1024x768 XGA, uses 3D comb filter to get a sharp and vivid picture, supports BNC connector for security application and integrates two speakers of 2 watts. In addition, V151BN can do looping with one BNC Video IN and one BNC Video OUT. The base stand and slim frame design makes the monitor look compact and simple. The V151BN provides high display quality, reliability and space-saving.
| Specification |
|
Model |
V151BN-B |
|
LCD Display |
15” Active Matrix TFT LCD Panel |
|
Max. Resolution |
1024(H) x 768(V) XGA |
|
Pixel Pitch |
0.297 x 0.297 (mm) |
|
Color Depth |
16.2 million |
|
Contrast Ratio |
500 : 1 (Typ) |
|
Brightness |
250 cd/m |
|
Viewing Angle |
Horizontal : 130 , Vertical : 120 |
|
Response Time |
12 ms (Typ) |
| Image Processing |
3D Comb Filter |
|
Signal Input |
Analog D-sub; Composite BNC |
|
Audio-in (speaker) |
2 Watts x 2 |
| Connector |
D-sub, DC in, BNC IN x1, BNC OUT x1, Composite Audio-in |
|
Power Consumption |
25 Watts (Max.); 3 Watts (standby) |
|
Power Adapter |
AC Input: 100-240V~1.8A, 50-60HzDC
DC Output: 12V/3.0A |
| Front Control |
Menu, Down, Up, Auto adjustment, Power |
|
OSD Function |
contrast, brightness, auto adjustment, H. position, H. phase, V. position, H. width, sharpness, color temperature, OSD position, language, recall, volume |
| Set Size |
13.63" (W) x 13.25" (H) x 5.5" (D) [346(W) x 337(H) x 140(D) mm] |
| Set Size without stand |
13.63" (W) x 11.63" (H) x 1.5" (D) [346(W) x 295(H) x 38(D) mm] |
|
Weight |
Net: 6 lbs (2.7 Kg) / Gross: 9 lbs (4.1 Kg) |
| Wall Mount |
VESA 75 (mm) |
| Safety & EMI |
UL, CUL, FCC-B, CB, CE, TUV/GS |
| Warranty |
1 year on LCD panel and 3 years on parts and labor (after 10/15/2007). |
| Accessory |
Power adapter, power cord, VGA cable, audio cable, user manual | |
|
|
|
Price: $315.99
