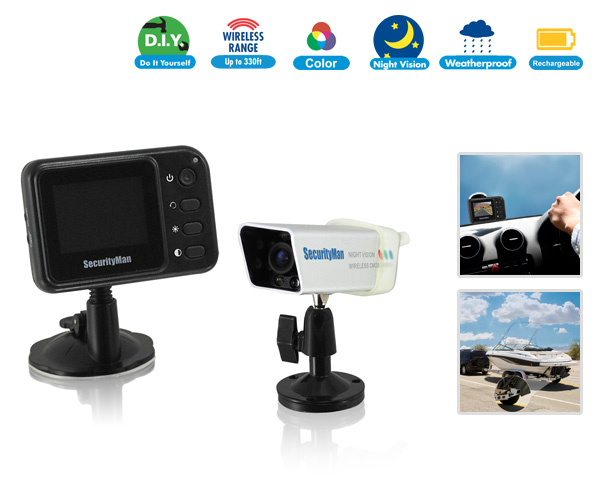

The PalmCam is a wireless portable magnetic camera and LCD monitor system. It is easy to mount to vehicle and use as a temporary security camera system wherever is needed. Practically use to monitor activities behind a vehicle while backing up ; to watch out for people, watch objects, keep an eye on livestock, merchandise and other personal belongings in trailer. It is a perfect gadget for hitching up trailers and boats. Simply mount the magnetic camera to the tailgate, monitor hitch while backing up, hitch up and go.
Package Includes:
- 1 x Wireless camera with magnetic mounting bracket
- 1 x 2.4GHz wireless monitor
- 1 x Cigarette lighter adapter (12v/24v)
- 1 x AC power adapter
- 2 x Y adapter cable
- 1 x Monitor suction cup mount
- 1 x Monitor vent clip mount
- 1 x Weatherproof cover (for camera)
- 1 x Video cable (for optional connection to a bigger monitor)
- 1 x Pouch
- 1 x Manual
Features:
- Portable and easy to mount 2.4GHz wireless color camera with magnetic stand
- Portable and easy to mount monitor to windshield/glass or air-vent
- 2.4" color LCD monitor with 480 x 240 resolution and built-in wireless receiver
- Infrared (IR) night vision range up to 3m/10ft
- Built-in rechargeable Li-battery in camera, lasts up to 1.5hrs (IR on) and 3 hrs (IR off)
- Wireless transmission goes up to 100m (330ft) in open space
- Image rotate function for proper rear view display
- Ideal for drivers of RVs, trucks, SUVs, and U-Hauls
Key Specifications:
| Camera (SM-842T) |
|
| Image Sensor |
Color CMOS |
| Total Pixels |
712x486 (NTSC) |
| Transmission Frequency |
ISM 2468MHz |
| Modulation Type |
FM |
| Bandwidth |
18MHz |
| Wireless transmission range |
Up to 100m / 300 ft (open space) |
| Rechargeable Battery (built-in) |
Lithium Battery, 500mAh, 2 hrs charge time
and 1.5hrs (IR ON) 3hrs (IR OFF) work time |
| Power Supply |
5VDC 1.0A |
| Transmission Power |
2mW |
| Night Vision Range (IR) |
Up to 3m/10ft |
| Dimensions |
28 x 90 x 28 mm (camera only) |
| Weight (net) |
110 g (camera only) |
| Operating Temperature |
-10¡ãC~+50¡ãC /+14¡ãF~+122¡ãF |
| Operating Humidity |
15-85%RH |
| |
|
| Monitor (SM-842R) |
|
| Monitor |
2.4¡± TFT LCD (color) |
| LCD Resolution |
480x240 |
| Receiving Frequency |
ISM 2468MHz |
| Demodulation Type |
FM |
| Receiving Sensitivity |
¡Ü-85dBm |
| Rechargeable Battery (built-in) |
Lithium Battery, 3.7V 1750mAh, up to 9hrs
charge time and up to 8hrs work time |
| Power Consumption |
450mA (Max.) |
| Power Supply |
5VDC 1.0A |
| Dimensions |
100 x 70 x 30 mm |
| Weight (net) |
140 g (monitor w/o battery) |
| Operating Temperature |
-10¡ãC~+50¡ãC /+14¡ãF~+122¡ãF |
| Operating Humidity |
15-85%RH |
|
