Wireless converter (900MHz)-converts wired camera to wireless (New, ETA: 08/15)

SM-401

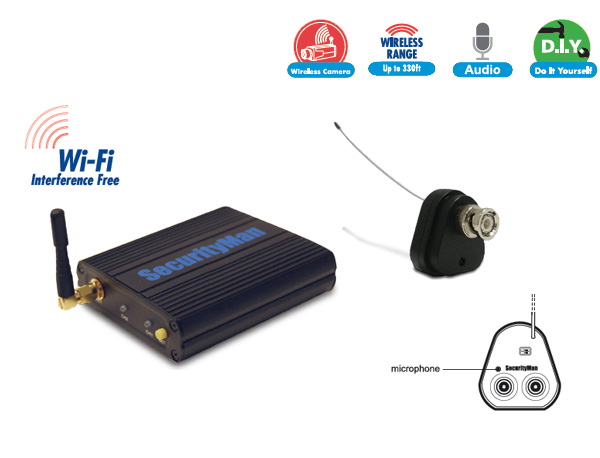

Security Man - SM-401-Converts wired Camera to wireless


  • Package Includes: 1 x Wireless transmitter (SM-401T) 1 x Wireless receiver (SM-7034) 1 x 8VDC power adapter (for receiver) 1 x Mini power cable 1 x AV RCA cable
  • Features: Turn any 12 volt wired CCTV camera to a wireless camera (900MHz) Avoid the hassle of running cables No interference from crowded 2.4GHz/5.8GH devices including Wi-Fi network device. Wireless transmission up to 330ft clear line of sight (100ft indoor) Built-in microphone (transmitter) Two-channel receiver supports up to two wireless cameras Transmitter (SM-401T) Specifications: Transmission Frequency FM, CH1=906MHz, CH2=924MHz (channel selectable dip-switch) Video Input BNC Audio Microphone built-in Bandwidth 18MHz Transmission Power 2mW Power Consumption 100mA (Max.) Power Input 12VDC Max. (NOT compliant with 24VDC power input) Dimensions(WxDxH) 1.38?x1.29?x1.54? Operating Temperature -10 ~ +50(Degree C) / +14 ~ +122(Degree F) Operating Humidity ?85%RH Weight 25g
  • Receiver (SM-7034) Specifications : Antenna 50 ohm SMA Receiving Sensitivity ?-85dBm Intermediate Frequency 480MHz Video Output Signal Level 1.1Vpp0.2Vpp@75 ohm, S/N >38dB Audio Output Signal Level 3.0Vpp1Vpp@600 ohm Power Consumption 165mA (Max.) Power Supply DC +8V Dimensions(WxDxH) 3.1?x3.6?x0.8? Weight 174g

  • Price: $66.99
    Buy Product Online | Visit Store Home

    Manufactured by SECURITY MAN
