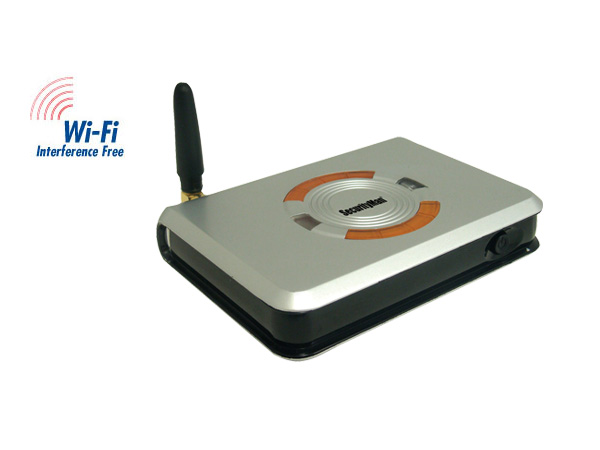

900MHz wireless receiver for FreeCam2

SM-302R

Security Man - SM-302R - 900MHz wireless receiver for FreeCam2


  • Features: 900MHz wireless receiver Only works with SecurityMan wireless cameras at frequencies of 906 & 924 MHz ( like SM-302T , SM-8123T , SM-8009 or SM-8209T ) Able to select any single camera (ch-1 or ch-2), or auto-loop/switch function Supports up to two 900MHz wireless cameras AV output to recorder (DVR/VCR) for recording or to monitor for direct display Able to add this receiver as many as needed Package Includes: 1 x SM-302R receiver (with antenna) 1 x Power adapter 1 x AV cable
  • Speciication : Transmission Frequency 902~928MHz Channel Options 2 Channels Selection_906MHz/924MHz_ Channel Selection and Control Three dip switches (Ch1/Ch2/auto-loop) Channel Indication 2 Green LED Frequency Stability 100KHz Local Oscillator Leakage -55dBm Receiving Sensitivity -85dBm Differential Phase 10Deg. S/N 38dB
  • Video Output Impedance 75ohm Video Output Voltage 1.00.2Vp-p(Standard value:1Vp-p) Audio Carrier 4.5MHz Audio Frequency Band 100_20KHz Audio Output Impedance 10Kohm Audio Output Impedance 1.20.4Vp-p(Standard value:1Vp-p) Audio S/N 50dB Antenna Type SMA RF Input Impedance 50ohm Power Consumption 180mA(MAX.) Power 7.5V 300mA(Positive in and negative out) Power Switch Touch Button

  • Price: $32.00
    Buy Product Online | Visit Store Home

    Manufactured by SECURITY MAN
