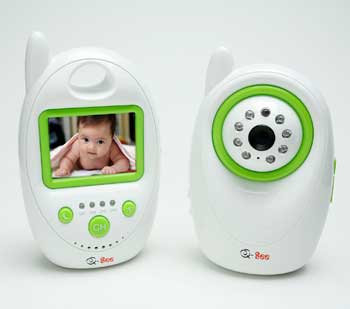

Q-See QSW8209C 2.5 TFT Baby Monitor w/Wireless Night Vision & Audio Camera

Overview:

The Q-See QSW8209C is a portable surveillance solution that is perfect for monitoring your baby, or any other situation that you need to monitor without actually being in the room. Since you do not need to setup wires between the camera and monitor you can take it with you and use it wherever and whenever you need. The monitor is small enough to carry in your hand, purse or pocket, but is strong enough to receive signals from a camera up to 300 feet away line of sight. It will support up to 3 wireless cameras, and you can even monitor through a TV or to a VCR or DVR if you need to record the video. It also has an audio receiver so you can hear as well as see what is happening, and has a sound and motion alarm to alert you when there is activity in the room. The camera has 9 LEDs to give you a black and white image even in a dark room, and PIR motion detection and microphone to alert you to activity so you do not need to constantly watch the monitor.

Q-See portable wireless surveillance products allow you to focus on what you need to do where you are, without having to worry about what is happening elsewhere.

Product Features

2.4GHz Wireless technology

300m Transmitting distance

Motion detection (PIR)

Sound trigger and audio

8 IR LEDs for night vision

Supports up to 3 wireless cameras

Manual or auto switching between cameras

Monitor hibernates in standby to conserve battery in scan mode and can be activated by sound or motion

A/V output can be connected to TV, VCR, DVR

Low-battery indicator

Product Specifications

Category	Description
Transmission Frequency	ISM 2,400~2,483 MHz
Transmission Power	10mW/CE; 2mW/FCC
Operating Frequency	2414MHz;2432MHz;2450MHz;2468MHz
Unobstructed Effective Range	100m (328ft)(Min.)
Modulation Mode	FM
Operating Temperature	-10 ~ +50(Degree C) / +14~ +122(Degree F)
Operating Humidity	=85%RH
Battery Working Time	5 hours (IR Off)
Camera Imaging Sensor Type	CMOS
Camera Picture Total Pixels	NTSC: 720×576 Pixels
Camera Horizontal Resolution	380 TV Lines
Camera View Angle	NTSC:55°
Camera Minimum Illumination	0 Lux
Camera BandWidth	18M
Camera Night Vision Range	5m
Camera Motion Detection Distance	5m (16ft)
Camera Sound Control Sensitivity	>63dB
Camera Consumption Current	120mA(IR OFF)(Max.) & 220mA(IR ON)(Max.)
Camera Power Supply	DC +8V
Camera Dimensions(WxDxH)	86x48x135 mm (3.5x2x5.5 in)
Camera Weight	146 g (5.2 oz)
Monitor LCD Screen Type	2.4 inches TFT-LCD
Monitor Effective Pixels	480x240
Monitor Receiving Sensitivity	=-85dBm
Monitor Video System	NTSC/PAL
Monitor Color Configuration	R.G.B.delta
Monitor Consumption Current	200mA(Max.)
Monitor Power Supply	DC +8V
Monitor Dimensions(WxDxH)	86x54x143 mm (3.5x2.25x5.75 in)
Monitor Weight	142 g (5 oz)

Product Contents

Qty	Description
1	2.4 GHz wireless cameras with night vision
1	2.5-in. colour TFT monitor with audio
2	Power Adapter for camera and monitor
1	AV cable to attach to TV
1	Manual

Product FAQs

What is the difference between a wired and a wireless camera?

Wired cameras have a video cable that runs from the camera to your recording or viewing device such as a DVR, VCR or monitor. Wireless cameras have a built-in transmitter that sends the video signal to a receiver. The receiver connects to your recording or viewing device.

How far can a wireless camera transmit?

Standard wireless cameras can transmit up to 300 feet in line of sight.

How many wireless cameras can you have in one location?

You can have up to four wireless cameras in one location. You can view all cameras at once using four receivers or you can use one receiver and switch to each camera. You will only be able to view one camera at a time if you only use one receiver. If you want to install multiple wireless cameras in one location it's best to order them at the same time so that they can be set to different channels.

Will a cordless phone interfere with wireless cameras?

Cordless phone that operate on the 2.4 GHz frequency will cause interference with 2.4 GHz cameras. Interference should be minimal and usually occurs if the phone is between the camera and receiver.

What is a 2.4 GHz wireless frequency?

A frequency is used to transmit a signal or data like video. 2.4GHz is the specific wireless frequency that our tranmitters use to send video signal to a receiver. All of our wireless cameras operate on the 2.4 GHz frequency. Range varies from 200' to 700' depending on environmental conditions. These units are FCC approved.

Is it possible to experience interference with 2.4Ghz wireless equipment, and what can possibly cause the interference?

It is possible to experience interference from 2.4Ghz phones or wireless internet. Also garage door openers, alarm systems and other devices on the 2.4Ghz frequency can cause interference. Microwave ovens and similar devices can also cause occasional interference.

I bought a wireless camera but I still have to plug it in. How is this wireless?

Wireless cameras do not have a video cable that runs from the camera to the recording device. Like all electronics they must still be powered in order to function.
