4 Ch H.264 Network DVR CIF Real Time or D1 Recording + VGA port(HDD OPTIONAL)

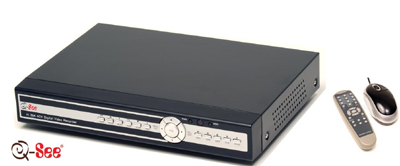

Q-See QSD9004V

Q-See QSD9004V 4 Ch. H.264 Network DVR CIF Real Time D1 Recording VGA port (QSC26404)


Product Features

H.264 Compression
(CIF) Real-time recording on each channel
Triplex technology (recording, playback, and net transmitting at the same time)
USB mouse function to easily navigate through program menus
Remote Internet monitoring (up to 5 users at the same time)
Mobile Phone Surveillance (Win Mobile Pro or Symbian OS on 3G networks)
4 Audio Inputs / 2 Audio Output

Product Specifications

Category Description
Video Compression H264
Video Inputs 4 BNC
Video Output 2 BNC
VGA Resolution 600x480, 800x600, 1024x768
Display Resolution 704x480
Display Frame Rate (Shared) 120 FPS
Playback Resolution 352x240, 704x480
Record Frame Rate (Shared) 120 FPS, 30 FPS
Record Options Time, Alarm, Motion Detection and Manual
Hard Drive Number/Type Supported HDD OPTIONAL 1 SATA up to 1TB
Audio Inputs/Outputs 4X RCA input and 2X RCA output
USB Port 2 USB 2.0 Ports
USB Support Flash drive, Hard Drive
Ethernet Port 1-RJ45
Remote Monitoring Internet Explorer, Mobile Phone with Win Mobile Pro or Symbian OS on 3G Networks
Operating System Support Win2000, WinXP, Vista
RS-485 Port (PTZ Support) Yes
External Alarm In/Out 4/1
Power Supply 110-240V, 12V 3A
Power Consumption 10 to 15W
Operating Temperature/Humidity 50œF to 104œF (10œC to 40œC)/ 10% - 90%
Weight (Combo) 10 Lbs

DISCONTINUED , SEE MODEL QR414-3
