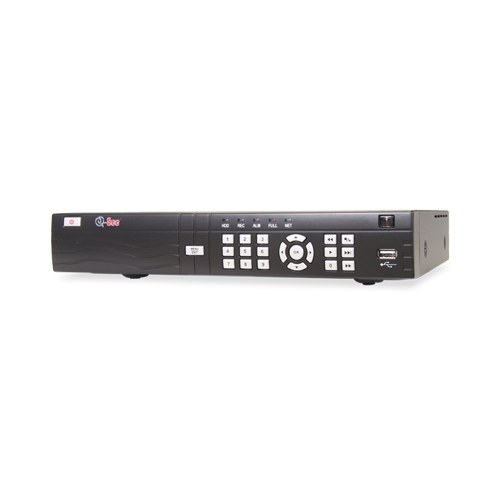

Q-See QS408-1 8Ch H.264 Network DVR 1TB Real Time CIF Recording,D1 rec,mobile phone surveillance
|
Product Model Number: QS408-1
Overview:
Quality you can see and experience at an affordable price. This 8 channel DVR features real time CIF recording, remote Internet monitoring and mobile surveillance through cell phones with Windows Mobile Pro, Symbian OS, iPhones, ipad, Android,and some Blackberry models on 3G networks. The H.264 compression allows for maximum storage and little loss of quality, while recording video on to a hard drive. It can simultaneously display live footage, record, playback, connect via network, and back-up without any recording loss.
Q-See’s Digital Video Recorders (DVRs) are designed to manage multiple cameras, and enable users to view, record and playback recorded video locally or over the Internet. This DVR supports up to 8 cameras, and can be integrated into your current security system. With Q-See, surveillance can be handled remotely – Worldwide.
Product Features
| H.264 Compression |
| (CIF) Real-time recording on each channel, D1 on 2 Channels |
| Triplex technology (recording, playback, and net transmitting at the same time) |
| USB mouse function to easily navigate through program menus |
| USB port for backup to USB flash drive or USB Hard Drive |
| Remote Internet monitoring (up to 5 users at the same time) |
| 6 individual users with own name, password, and permissions |
| Mobile Phone Surveillance (Win Mobile Pro, Symbian OS, iPhone, iPad, Android and some blackberry models on 3G Networks) |
| VGA Port for Viewing Flexability |
| 8 Audio Input / 1 Audio Output |
| Central Management Software (CMS): Monitor and manage several DVR Systems from one central location. Example: You own 4 DVR systems, same model number, in 4 offices. Connect to all 4 DVRs and monitor and manage simultaneously from the same computer screen |
Product Specifications
| Video Compression |
H264 |
| Video Inputs |
8 BNC |
| Video Output |
1 BNC, 1 VGA |
| VGA Resolution |
800x600, 1024x768 |
| Display Resolution |
704x480 |
| Display Frame Rate (Shared) |
240 FPS |
| Display Frame Rate (Shared) |
30 FPS |
| Playback Resolution |
352x240, 702x408 on ch1 and ch2 |
| Record Frame Rate (Shared) |
30 FPS |
| Record Options |
Time, Alarm, Motion Detection and Manual |
| Audio Inputs/Outputs |
8X RCA input and 1X RCA output |
| USB Port |
2 USB 2.0 Ports |
| USB Support |
Mouse, Flash drive, Hard Drive |
| Ethernet Port |
1-RJ45 |
| Ethernet Port |
1-RJ45 |
| Remote Monitoring |
Internet Explorer, Mobile Phone with Win Mobile Pro, Symbian OS,iPhone, iPad, Android, and some Blackberry models on 3G Networks |
| Operating Systems Supported |
Win2000, WinXP, Vista, Win7 (MacOS not supported) |
| RS-485 Port (PTZ Support) |
Yes |
| Number of Hard Drives - Type |
1TB HDD PRE-INSTALLED, 1/ SATA up to 1TB |
| Power Supply |
110-240V, 19V 3.42A |
| Power Consumption |
6W (excluding HD) |
| Operating Temperature/Humidity |
50°F to 122°F (-10°C to 50°C)/ 10% - 90% |
| Dimensions (WxDxH) |
|
| Weight |
Product Contents
| 1 |
QS408 8 Channel H.264 Network DVR |
| 1 |
DVR power supply |
| 1 |
Remote control (batteries not included) |
| 1 |
USB mouse |
| 1 |
RJ-45 Cat 5 Network Cable |
| 1 |
BNC to RCA Video Cable |
| 1 |
Software CD |
| 1 |
Product Manual |
Product Compatibility
| Operating Systems Supported |
Win2000, WinXP, Vista, Win7 (MacOS not supported) |
| Smart Phones Supported |
Win Mobile Pro, Symbian, iPhone/iPad, Android, Blackberry Curve 8900, Bold 9700, Tour 9630 |
Installation Guides
Software
|
Price: $379.99
Buy Product Online | Visit Store Home
|
|
|
Manufactured by Q-SEE |
|
|
|
|
