Product Model Number: QSTD5304
Overview:

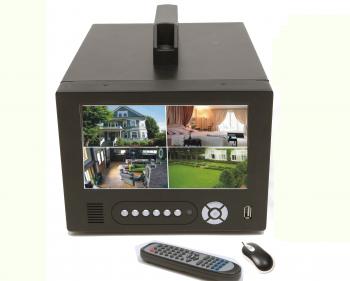

This 7" LCD Monitor with a built-in 4 Channel H.264 DVR is a complete low cost solution to your security needs. The QSTD5304 uses H.264 compression for conserving storage space with little loss of quality. The system also features multiple recording options, and the ability to easily backup your vital scenes through a USB flash drive or hard drive. Remote monitor your assets over the internet via Internet Explorer, or through a cell phone with WinCE or Symbian OS and 3G network.
Q-See's Digital Video Recorders (DVRs) are designed to manage multiple cameras, and enable users to view, record and playback recorded video locally or over the Internet. This DVR supports up to 4 cameras, and can be integrated into your current security system. With Q-See, surveillance can be handled remotely worldwide.
Product Features
| 7" LCD monitor with built-in DVR |
| CIF Real-time recording per channel |
| H.264 Compression |
| Record and Display at 120FPS |
| Various recording modes |
| USB Port for backup to HDD and Flash Drive |
| USB mouse function |
| Remote viewing through IE Browser |
| Mobile phone surveillance - WinCE & Symbian on 3G |
Product Specifications
| Video Compression |
H264 |
| Video Inputs |
4 BNC |
| Video Output |
2 BNC, 1 Svideo |
| Display Resolution |
Up to 720x480 |
| Display Frame Rate (Shared) |
120 FPS |
| Playback Resolution |
320x240 |
| Record Frame Rate (Shared) |
120FPS shared by cameras |
| Record Options |
Time, Alarm, Motion Detection and Manual |
| Search Options |
Search by Time, Event (Alarm or Motion Detection) |
| Hard Drive Number/Type Supported |
1/SATA up to 1000GB |
| Audio Inputs/Outputs |
2 RCA audio input and 1 input |
| USB Port |
Yes |
| USB Port |
Yes |
| USB Support |
HD, Flash Drive |
| Ethernet Port |
RJ 45 |
| Remote Monitoring |
Internet Explorer |
| Operating System Support |
Windows 2000, Xp, Vista |
| RS-485 Port (PTZ Support) |
Yes |
| External Alarm In/Out |
4 / 1 |
| Power Supply |
110-240V, 12V 3.5A |
| Operating Temperature/Humidity |
14œF to 131œF (-10œC to 55œC)/ 10% - 90% |
| Dimensions (W x D x H) |
7.75 x 11 x 6 in (197 x 280 x 153 mm) |
| Weight |
7 Lbs (3.2 Kg) |
Product Contents
| 1 |
QSDF5304 4CH H264 real time DVR with 7" Built-in LCD Monitor |
| 1 |
Power Supply for DVR |
| 1 |
Remote Control with batteries |
| 1 |
Product Manual |
| 1 |
RJ-45 Network Cable |
| 2 |
RCA to BNC adapters |
Product Accessories
| QS1990 |
19 Inch LCD Monitor |
| QOCDC |
Outdoor 6mm Color CCD 420TVL Camera - 30ft Night Vision |
| Operating System |
Win2000, WinXP, Vista |
|
