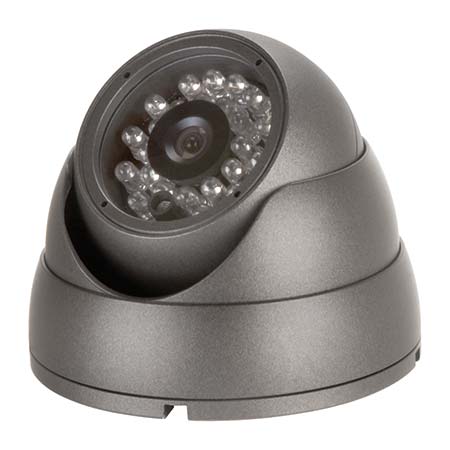

Sony 1/3" CCD Vandal Proof IR Dome (36LED, 480TVL)

QSH23L - Sony 1/3

Q-See - QSH23L - Sony 1/3" CCD Vandal Proof IR Dome 60 FEET RANGE (36LED, 480TVL)


Features

  • Vandal Proof IR Dome Camera w/ Double Loop Glass
  • Sony 1/3" Color CCD 23 IR LED,
  • IR Distance up to 60ft
  • Back Light Compensaton (BLC)
  • Auto White Balance (AWB) Vari-Focal
  • Lens: Board lens 3.6mm/F2.0
Technical Specifications
Image Sensor
1/3"SONY
Horizontal Resolution
480 TV Line
Pixels
PAL:752(H)¡Á582(V) NTSC:768(H)¡Á494(V)
TV System
PAL/NTSC
IR LED
¡é5 X 36 PCS
IR Series Distance
6O FEET
Lens
Vari-focal 3.5-9mm Lens
Sync System
Internal
IR Status
Under 10 Lux By CDS
Usable Illumination
0 Lux/F2.0 (LED ON)
IR Power On
CDS Auto Control
S/N Ratio
¡Ý48dB (AGC OFF)
Gamma Correction
0.45
Video Out
Composite Signal (1.0Vp-p, 75¦¸)
Scanning System
NTSC:525 Lines, 60 Field/Sec
Electronic Shutter Time
Auto:PAL 1/50-1/100,000Sec;NTSC 1/60-1/100,000Sec
Operation Temperature
-10 ~ +50 degrees RH95% Max
Storage Temperature
-20 ~ +60 degrees RH95% Max
White Balance
Auto
Power Source
DC12V 400mA
Dimension
¡é94 x 68.5(H) mm
Weight
650g

Package Contents

1 ¨C Color Camera with CCD technology
1 ¨C 60 Ft. Cable
1 ¨C Power Adapter
1 - User¡¯s Manual

1 - Stand included
DISCONTINUED, See Sub >> QSCD48IR or QSH49L
