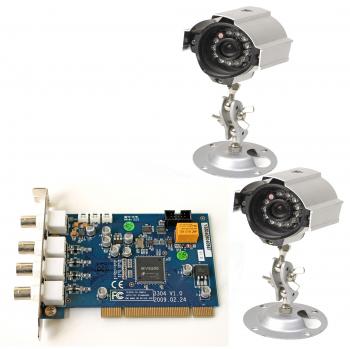

Q-See - QSDT42DPCRC Channel H.264 Real-Time PCI DVR Card with 2 CCD Color Cameras
Product Model Number:
QSDT42DPCRC
Overview: Turn your personal computer into your own surveillance center with our Q-See PC based Security Solution Package! The QSDT42DPCRC combo bundle includes a PCI DVR Card with 2 CCD Cameras. It offers state of the art H.264 software recording compression, allowing you to record and store video files directly to your computer. H.264 recording compression enables you to maximize your storage capacity without compromising quality. This package is a great solution to all of your security solution needs. Not only can you monitor your video feed directly from your personal computer, you can also remotely monitor via Internet Explorer, your iPhone or other supported smartphone equipped with Win Mobile Pro or Symbian operating systems on a 3G network. (Blackberry & Android not supported). This PCI DVR Card is capable of supporting up to 4 cameras and is equipped with 1 audio feed input that works in conjunction with your PC sound card to capture audio. Q-See security solutions maximize your ability to keep your family secure, protect your assets and manage your staff and resources effectively and efficiently. This security system is easy to install and contains everything you need to setup a secure home or business environment. With Q-See, surveillance can be handled remotely – worldwide.
Product Features
| H.264 Real-time software compression |
| Record and Display at 120 FPS (shared by cameras) |
| Recording frames adjustable from 1 - 30 FPS per camera |
| Connect up to 4 CCTV cameras |
| Remote internet monitoring and networking |
| Remote surveillance, playback and PTZ control through IE Browser |
| Mobile Phone Surveillance (Win Mobile Pro, Symbian OS, and iPhones on 3G networks) |
| Various recording modes |
| Alarm triggered with sensor, motion, video loss, and HDD space shortage |
| You can zoom/capture/save/print/backup images |
| Search by time/date and recording events |
| 1 PC Audio channel |
| Supports email motion notification and Emap |
Product Specifications
| Video Compression |
H.264 (Software) |
| Video Inputs |
4 BNC |
| Video Output |
NA |
| VGA Resolution |
None |
| Display Resolution |
1024x768 |
| Display Frame Rate (Shared) |
120 FPS |
| Playback Resolution |
320x240 |
| Record Frame Rate (Shared) |
120 FPS |
| Record Options |
Time, Alarm, Motion Detection and Manual |
| Hard Drive Number/Type Supported |
Uses PC hard drive |
| Audio Inputs/Outputs |
1 on PC sound card |
| USB Port |
Uses PC USB |
| USB Support |
None |
| Ethernet Port |
Uses PC Ethernet |
| Operating System Support |
Win2000, WinXP, Vista |
| RS-485 Port (PTZ Support) |
Yes |
| External Alarm In/Out |
4/1 |
| RS-485 Port (PTZ Support) |
Yes |
| Power Supply |
NA |
| Power Consumption |
NA |
| Operating Temperature/Humidity |
NA |
| Dimensions |
0.75 x 6 x 4 in (19 x 153 x 102 mm) |
| Weight |
2 lbs (1 Kg) |
Product Contents
| 1 |
QSDT4PCRC H.264 Software Compression DVR PCI Card |
| 1 |
SuperDVR software on Installation CD |
| 1 |
Product Manual |
| 4 |
BNC to RCA Adapters |
| 2 |
QD28414W Color Cameras with 1/4in Sony CCD Sensor |
| 2 |
Camera stands |
| 2 |
Camera Power Supplies |
| 2 |
60 ft Cables |
Product Accessories
| QS50B |
BNC Cable 50 Feet Video and power |
| QS100B |
BNC Cable 100 Feet |
Product Requirements
| OS Supported |
Win2000, WinXP, Vista |
| CPU |
Intel Processor Pentium/Core 2Ghz (minimum) |
| HDD |
100GB Free space (minimum) |
| RAM |
512 MB (minimum) |
| Video Card |
Supports most AGP and PCI-E Graphics cards with 64 MB of RAM and full Direct Draw Support |
| Port |
Available PCI Slot |
|
Price: $269.99
