Compatible with iPhone
Product Model Number: QSDR04RTCC4-320
Overview:
Quality you can see and experience at an affordable price. This 8 channel DVR features real time CIF recording, remote Internet monitoring and mobile surveillance through cell phones with Windows Mobile Pro and Symbian OS on 3G networks. The H.264 compression allows for maximum storage and little loss of quality, while recording video on to a hard drive. It can simultaneously display live footage, record, playback, connect via network, and back-up without any recording loss.
Q-Sees Digital Video Recorders (DVRs) are designed to manage multiple cameras, and enable users to view, record and playback recorded video locally or over the Internet. This DVR supports up to 8 cameras, and can be integrated into your current security system. With Q-See, surveillance can be handled remotely Worldwide.
Product Features
| H.264 Compression |
| (CIF) Real-time recording on each channel |
| Triplex technology (recording, playback, and net transmitting at the same time) |
| USB mouse function to easily navigate through program menus |
| USB port for backup to USB flash drive or USB Hard Drive |
| Remote Internet monitoring (up to 5 users at the same time) |
| Mobile Phone Surveillance (Win Mobile Pro or Symbian OS on 3G Networks) |
| VGA Port for Viewing Flexability |
| 1 Audio Input / 1 Audio Output |
Product Specifications DVR
| Video Compression |
H264 |
| Video Inputs |
8 BNC |
| Video Output |
2 BNC, 1 VGA |
| VGA Resolution |
600x480, 800x600, 1024x768 |
| Display Resolution |
704x480 |
| Display Frame Rate (Shared) |
240 FPS |
| Playback Resolution |
352x240 |
| Record Frame Rate (Shared) |
240 FPS |
| Record Options |
Time, Alarm, Motion Detection and Manual |
| Audio Inputs/Outputs |
1X RCA input and 1X RCA output |
| USB Port |
2 USB 2.0 Ports |
| USB Support |
Mouse, Flash drive, Hard Drive |
| Ethernet Port |
1-RJ45 |
| Remote Monitoring |
Internet Explorer, Mobile Phone with Win Mobile Pro or Symbian OS on 3G Networks |
| Operating Systems Supported |
Win2000, WinXP, Vista |
| Hard Drive |
320GB |
| RS-485 Port (PTZ Support) |
Yes |
| External Alarm In/Out |
8/1 |
| Power Supply |
110-240V, 12V 5A |
| Power Consumption |
10 to 15W (excluding HD) |
| Operating Temperature/Humidity |
50¨cF to 104¨cF (10¨cC to 40¨cC)/ 10% - 90% |
| Dimensions (WxDxH) |
11.75 x 9 x 2.25 in (300 x 229 x 58 mm) |
| Weight |
4 Lbs (1.8 Kg) |
|
 |
|
Product Features QSM2018
|
|
|
|
Q-See QSM2018 CMOS Security Cameras
The Q-See QSM2018CMOS Security Cameras with Power Adapter capture full color security or surveillance footage at up to 400 TV lines of resolution. Each camera is equipped with a 6mm lens for concise, accurate, and durable camerawork. TheQ-See QSM2018C4 4 Pack CMOS Security Cameras are each equipped with 11 Infrared LED lights, providing any security installation with up to 30 feet of accurate Night Vision recording. This Q-See security cameras also comes with 60 feet of cable and a power adapter for easy and straightforward installation.“What it is and Why You Need it”Outdoor Color Camera – Fully protect your business, home and peace of mind with a 4-camera security surveillance installation. Records in 400 TV lines of Resolution—View your recorded images clearly in Television quality. 11 Infrared LEDs provide 30 Foot Night Vision Capability—protect your property and person even in nighttime applications. 6mm lens on each camera—Records accurately and remains durable against the elements.
| | |
|

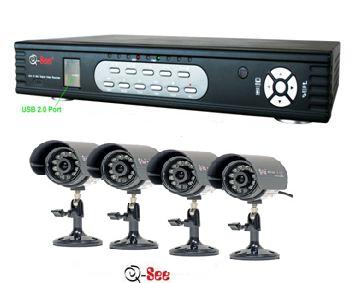

Product Contents
| 1 |
QSDR04RTC 4 Channel H.264 Network DVR |
| 1 |
DVR power supply |
| 1 |
USB mouse |
| 1 |
RJ-45 Cat 5 Network Cable |
| 1 |
BNC to RCA Video Cable |
| 1 |
Software CD |
| 4 |
CAMERAS |
| 1 |
4-WAY POWER SPLITTER |
| 1 |
Product Manual |
|
